COPPER Solutions

Extension box

Eurolan Extension box is a splice box for shielded C6A/ unshielded C6 cable. If you get a violation of an existing cable or need to move an outlet, for example, this is a very good solution!

Meet the requirements of EN 50173.

Ordering information

E-number
5140286
5140287

Part number
13C-EA-03SL
13C-U6-03WT

Description
Eurolan Extension box C6A FTP
Eurolan Extension box C6 UTP

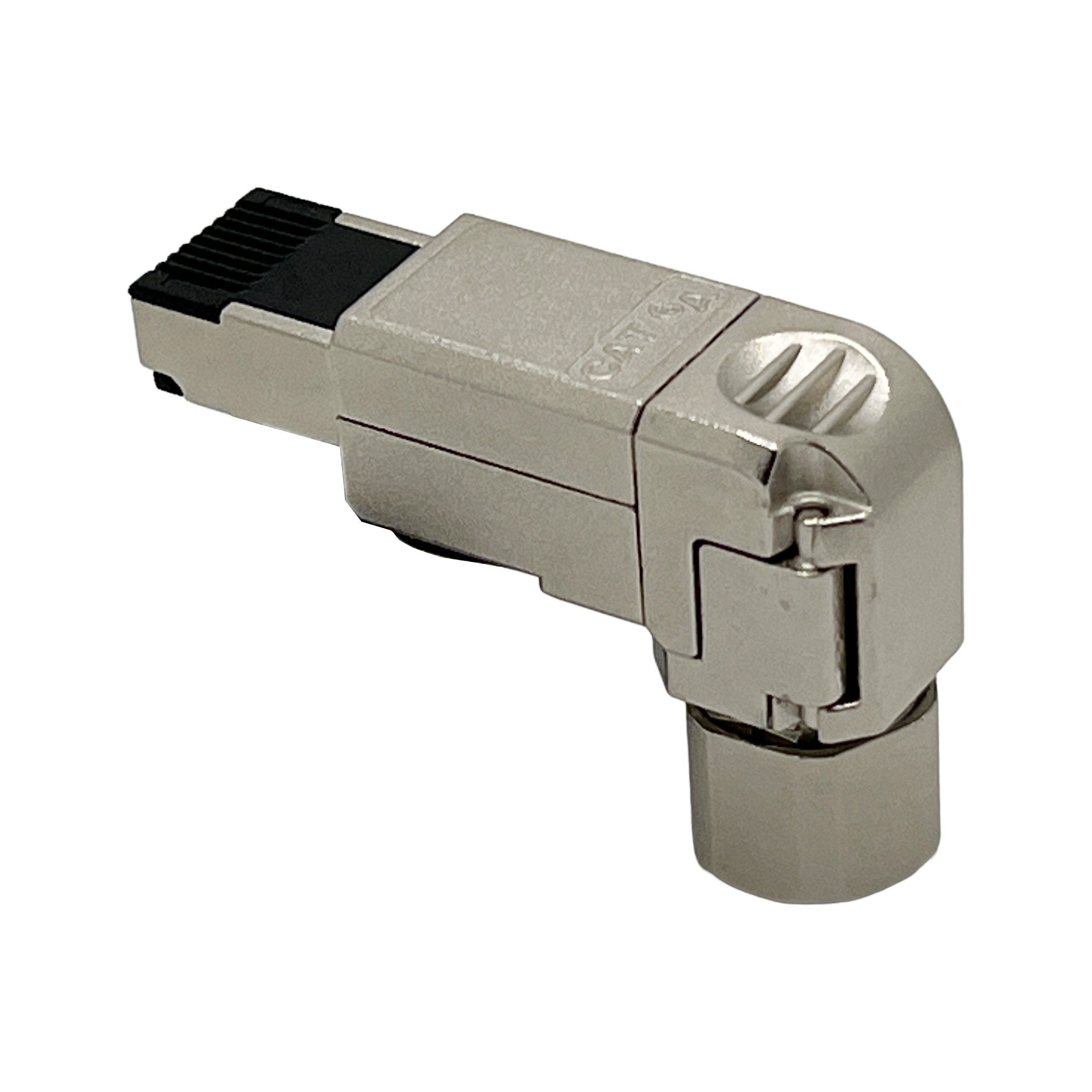

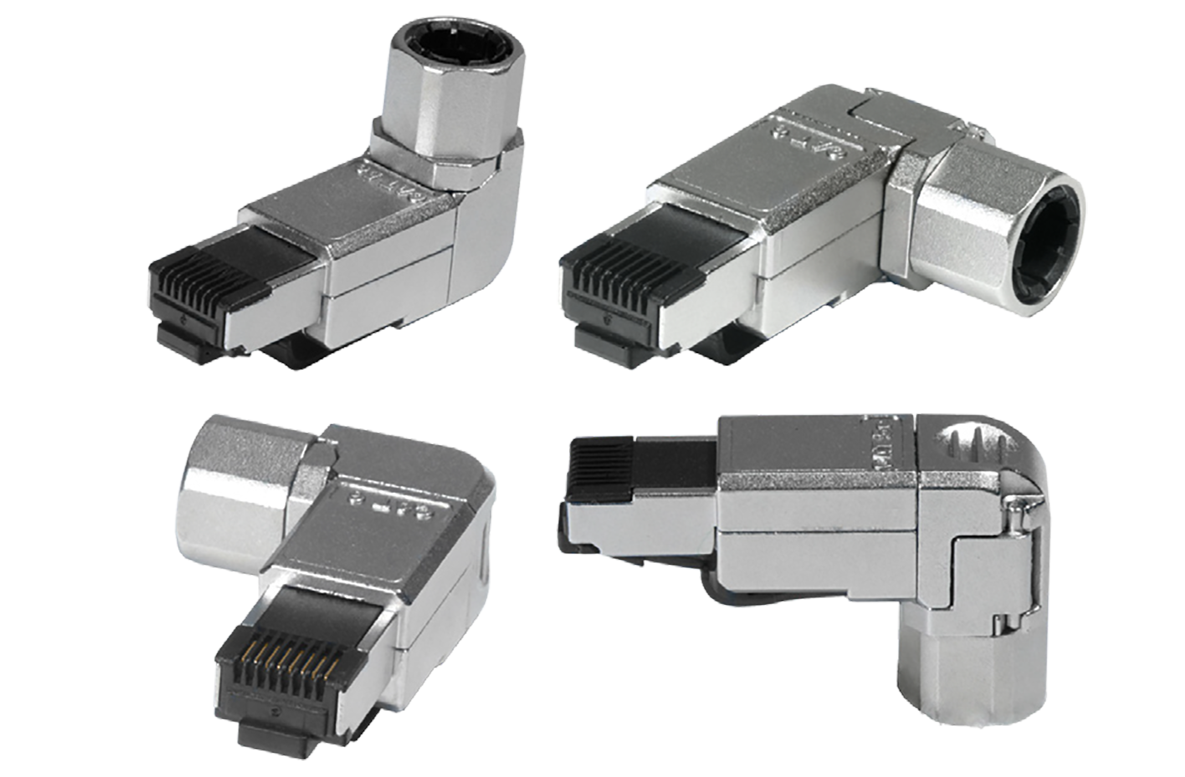

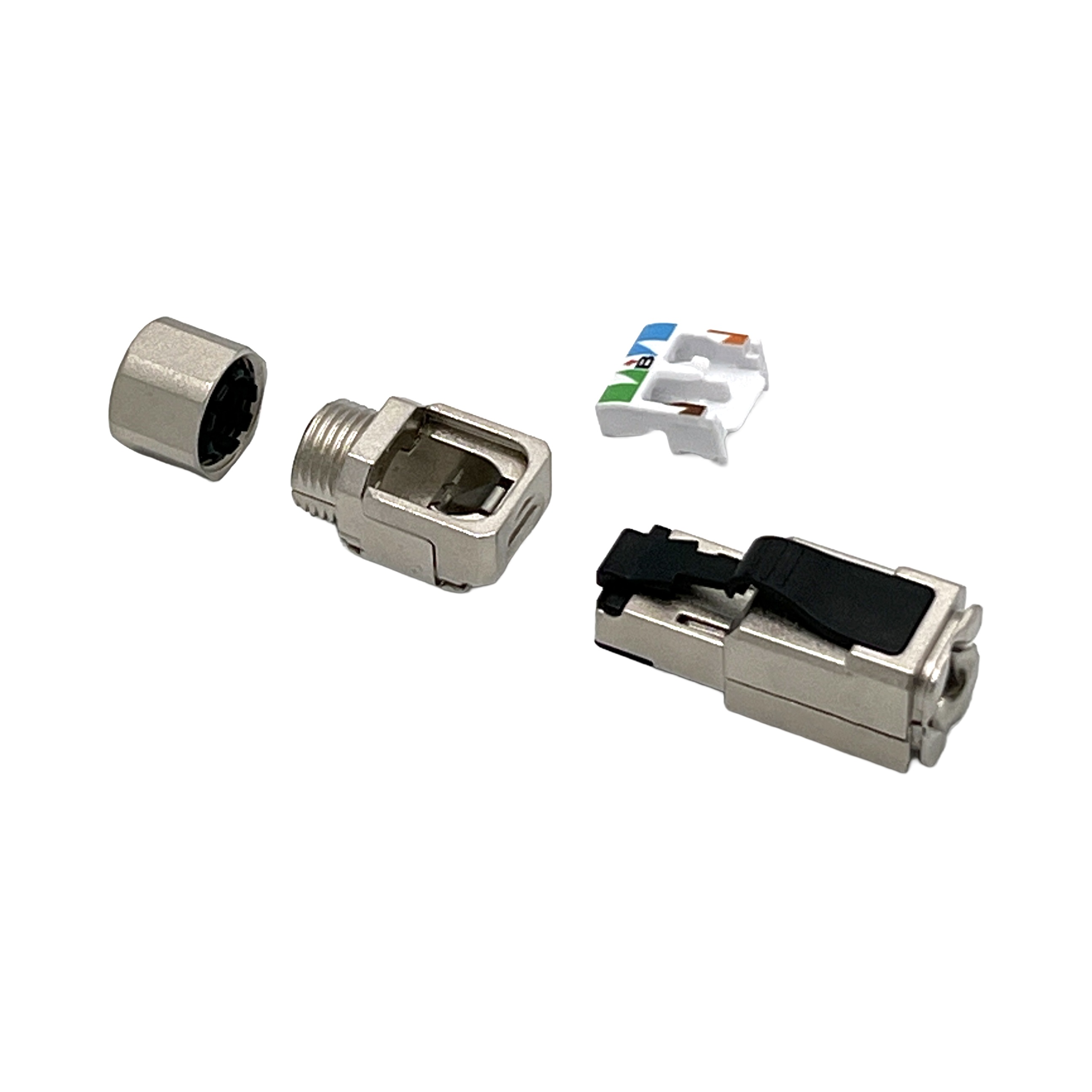

C6A Male STP termination plug

Eurolan RJ45 C6A Male STP termination plug for terminating on shielded solid C6A cable. Verified to 500 MHz and manage applications up to 10 Gbit and conforms to specifications according to: ISO/IEC 11801- C6A. Termination is made without special tool.

Ordering information

E-number
5140278


Part number
13A-EA-03SL

Description
Eurolan direct termination shielded plug Cat6A

C6A feMale/female STP connector

Eurolan C6A female/female STP connector for jointing shielded/unshielded solid C6A cable. Verified to 500 MHz and manage applications up to 10 Gbit and conforms to specifications according to: ISO/IEC 11801- C6A. Termination is made without special tool.

Ordering information

E-number
5140316


Part number
16B-EA-13SL


Description
Eurolan straight F/F connector Cat6A FTP
